Removing The Air Filter On A Stelvio/Giulia 2.0 Litre
This 'How To' is based on the Stelvio 280hp model.

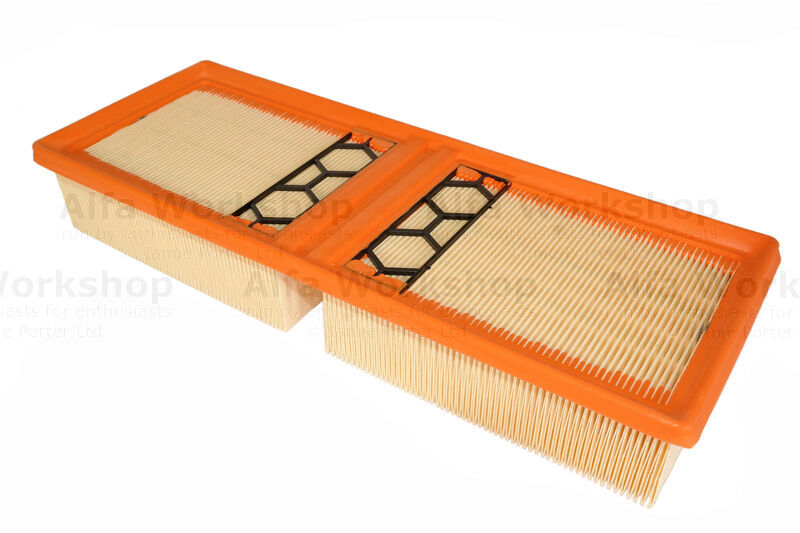

Air filter 50534420
 | Undo the x4 screw bolts to the air filter housing. |
|

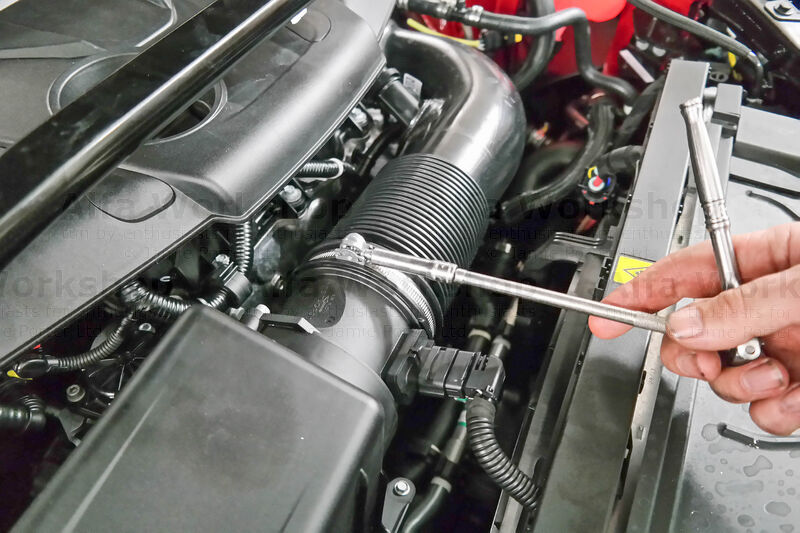

 | Wind off the jubilee clip. |
|

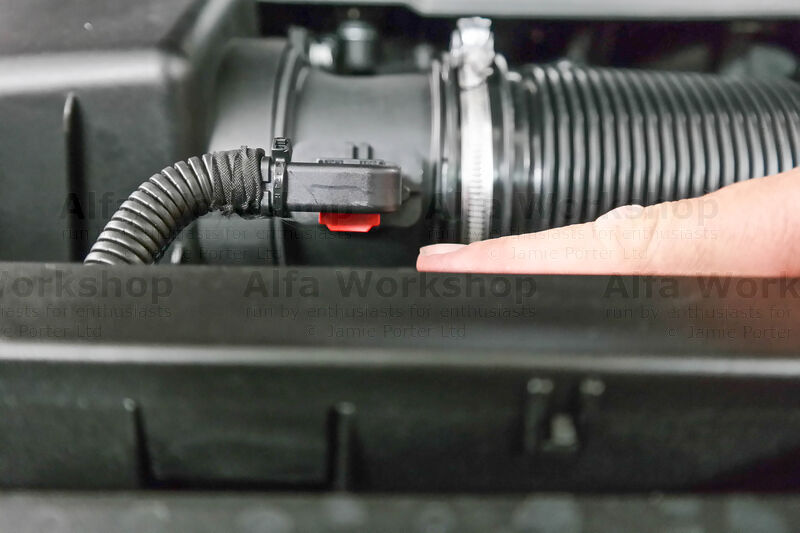

 | On the underside of the connector to the air flow meter is a small RED tab that you need to slide outwards to the front of the car. |
|

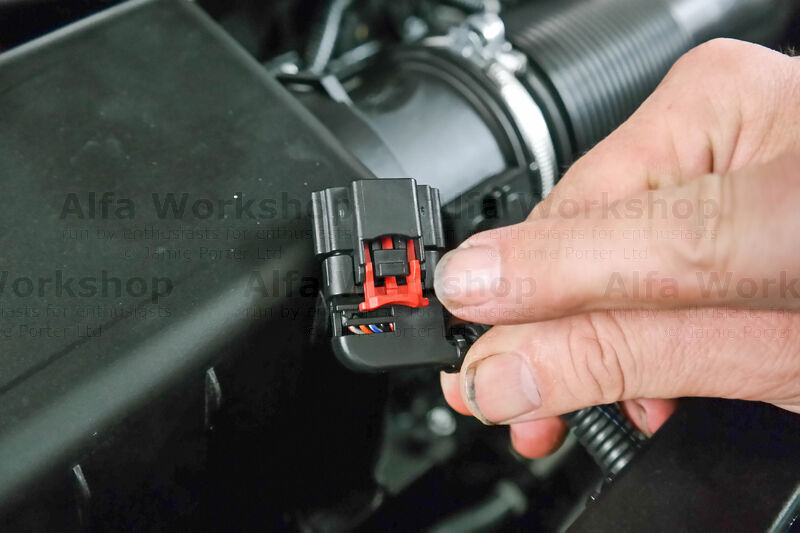

 | Squeeze the sides of the plug and disconnect. |
|
 | Pull the intake hose apart from the housing and lift the lid. |
|

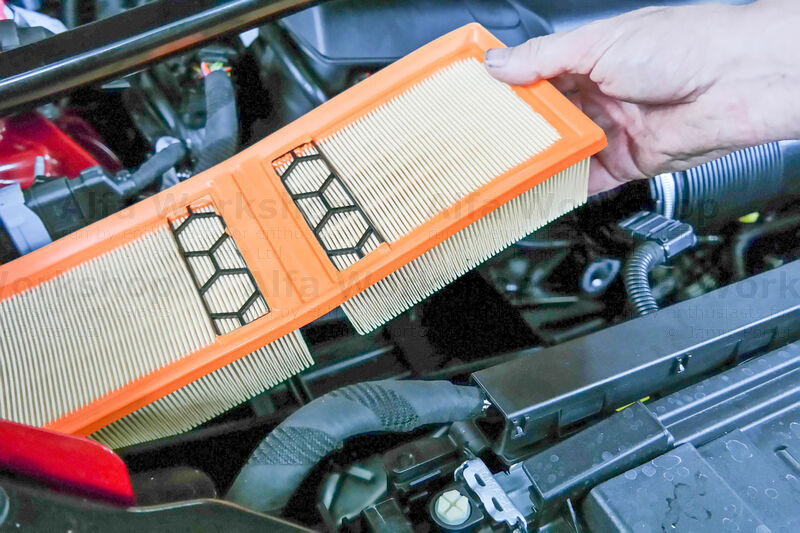

 | You can now remove the air filter. |
|
