Removing The Pollen Filter On An Alfa 159/Brera
The pollen filter on a 159/Brera is concealed within the glove box and is often neglected.

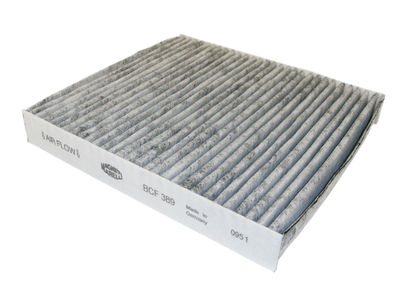

Pollen filter 77363370
 | Open the glove box. |
|
 | Remove the small cover at the top right hand corner. |
|

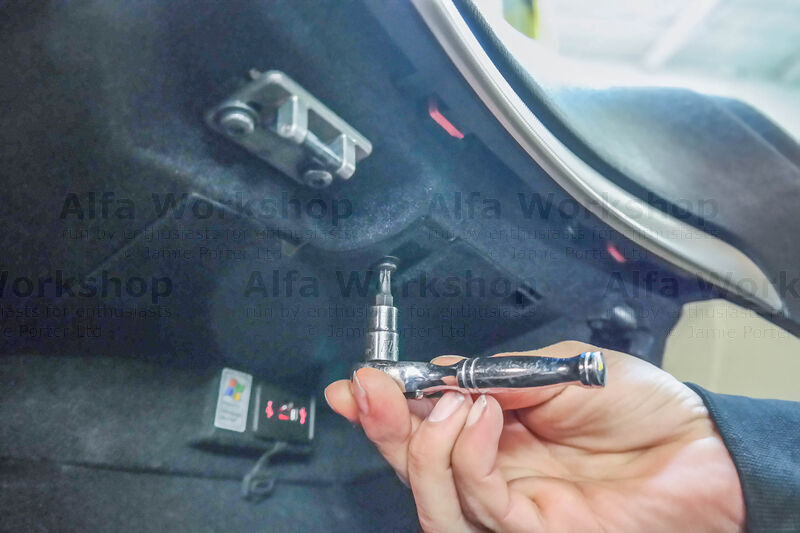

 | Undo the T25 (TORX) screw. |
|
 | Press in the two tabs as shown.... |
|
 | ....to release the cover.... |
|
 | ....and remove. |
|

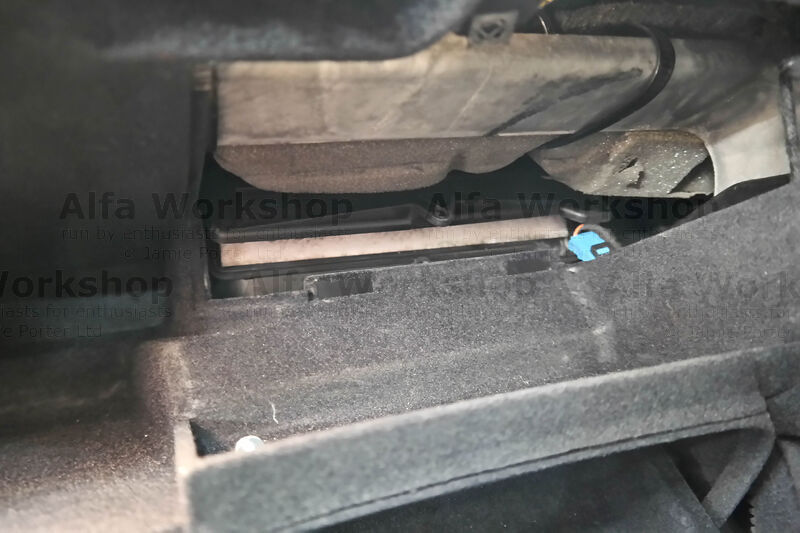

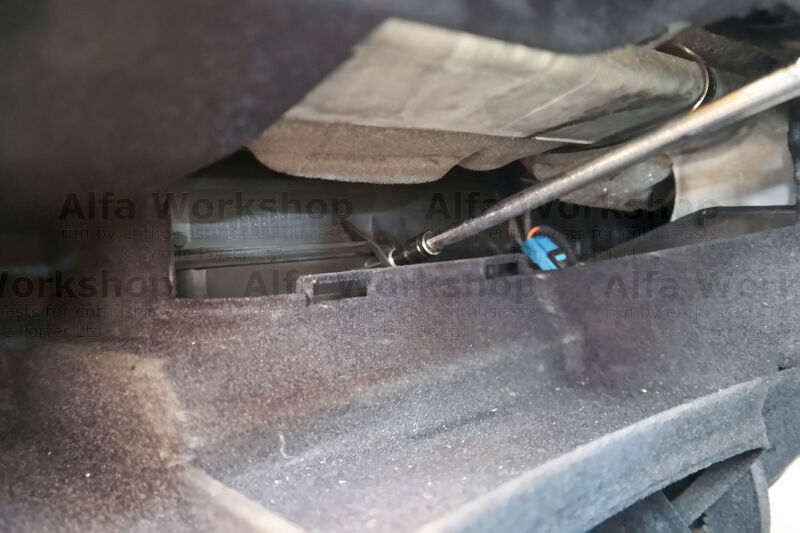

 | Undo the 5.5mm screw to the pollen filter compartment. |
|
 | Lift up the flap.... |
|
 | ....and pull out the pollen filter. |
|

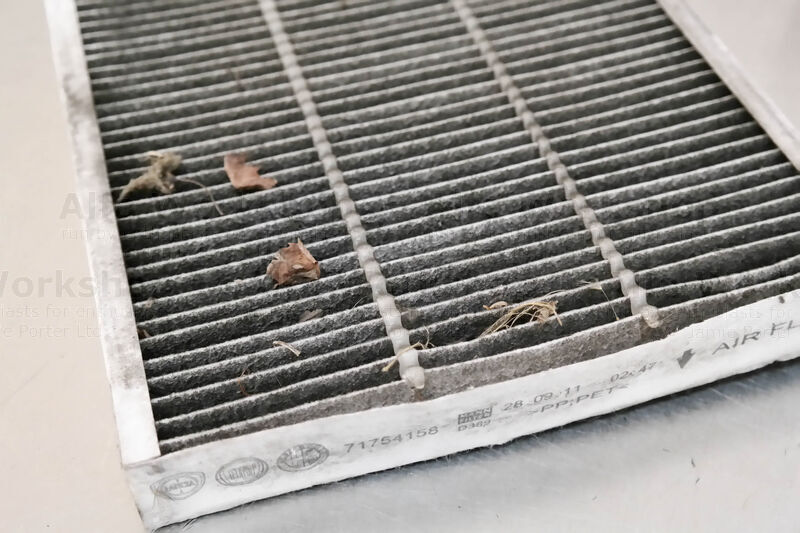

 | A very sorry looking pollen filter! |
|
