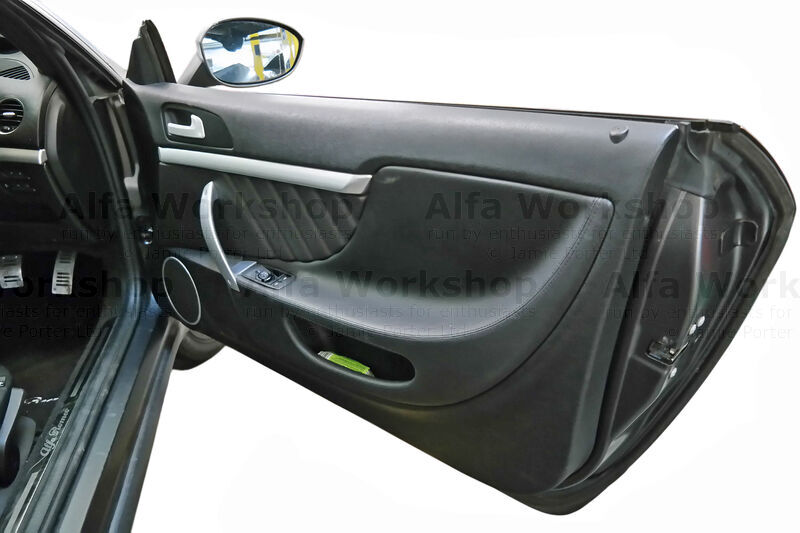

Inner Door Card Removal On An Alfa Brera/Spider
You'll have to remove the door card if you need to work on the door lock or window regulator.

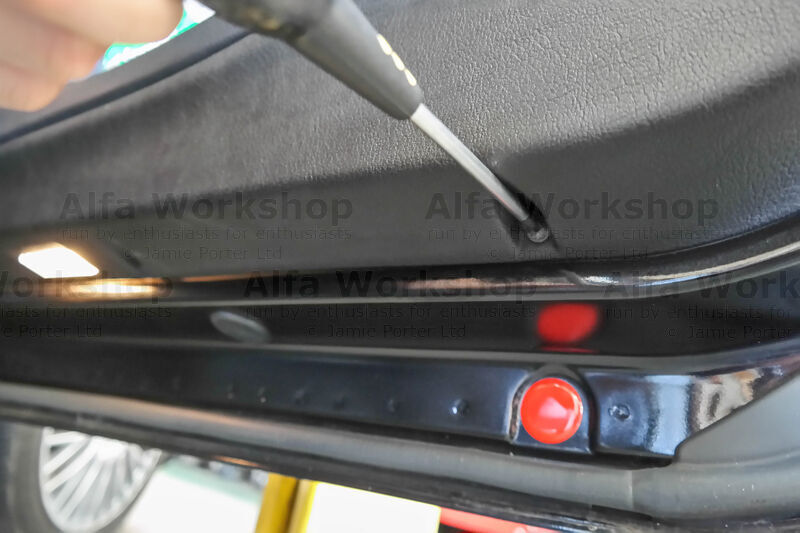

 | Unscrew the x4 Phillip screws along the bottom of the door card.... |
|

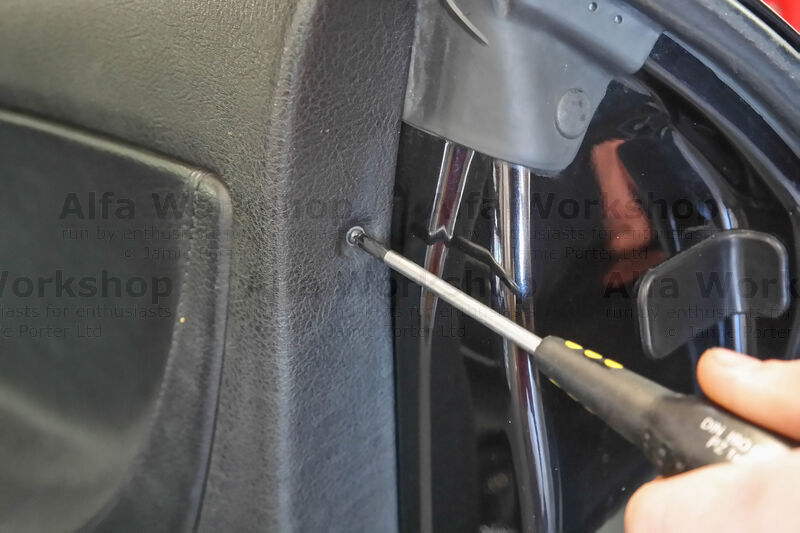

 | ...and the baby screw on the side of the door. |
|

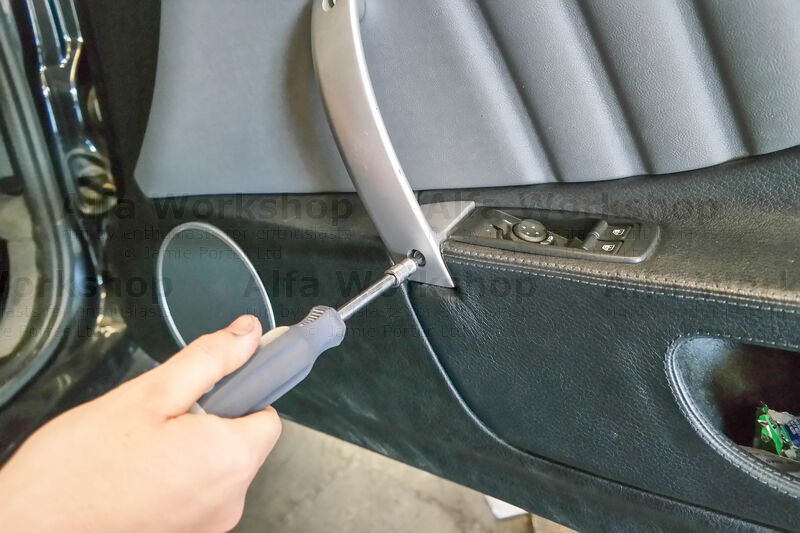

 | Remove the x2 5mm allen bolts on the pull to handle. |
|

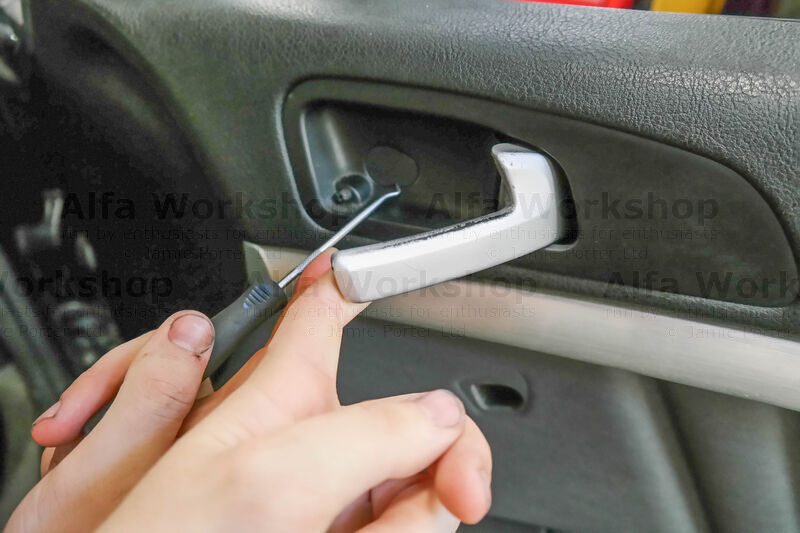

 | Pop off the small cover behind the door release lever... |
|

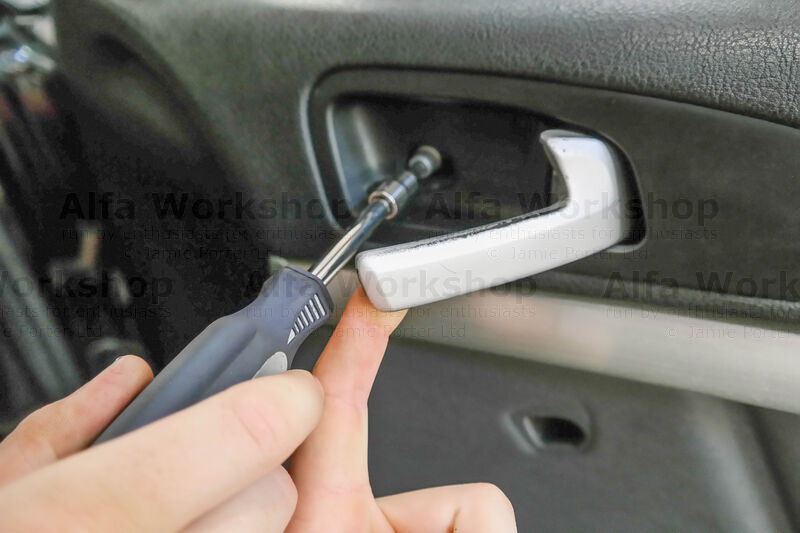

 | ...and undo the 5mm allen bolt. |
|

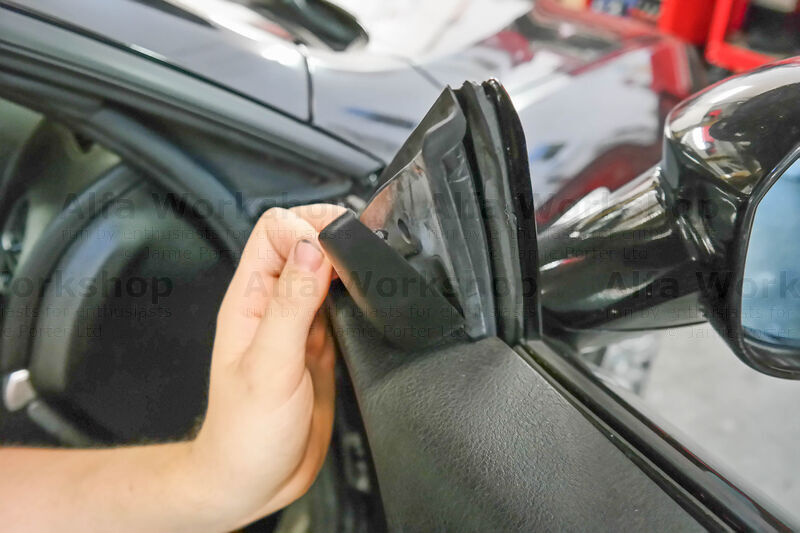

 | Pull off the corner ornament... |
|

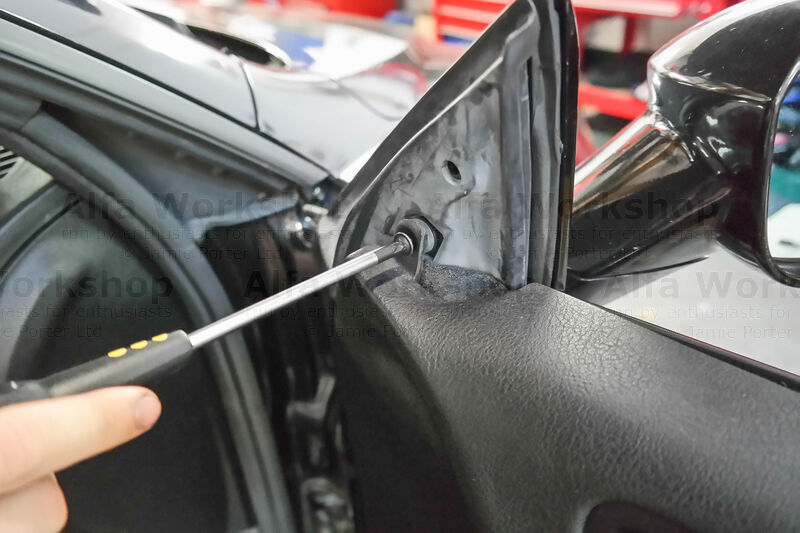

 | ...and undo the screw. |
|

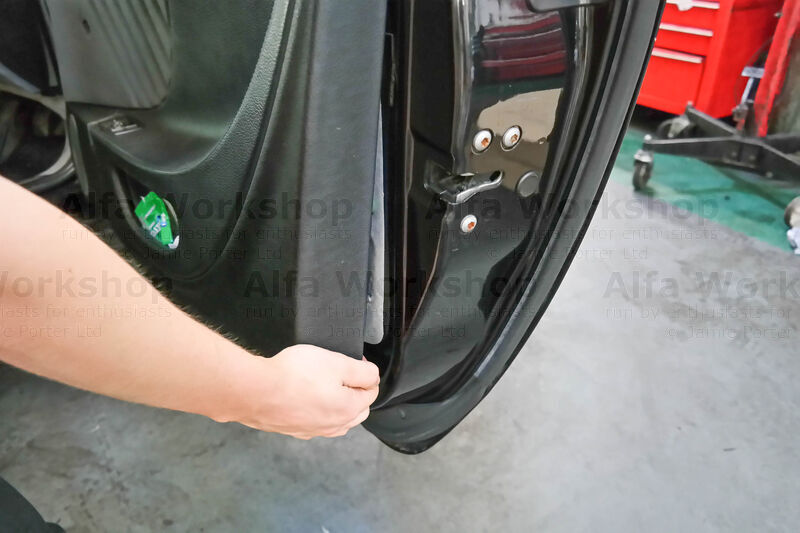

 | Pull off the door card. |
|

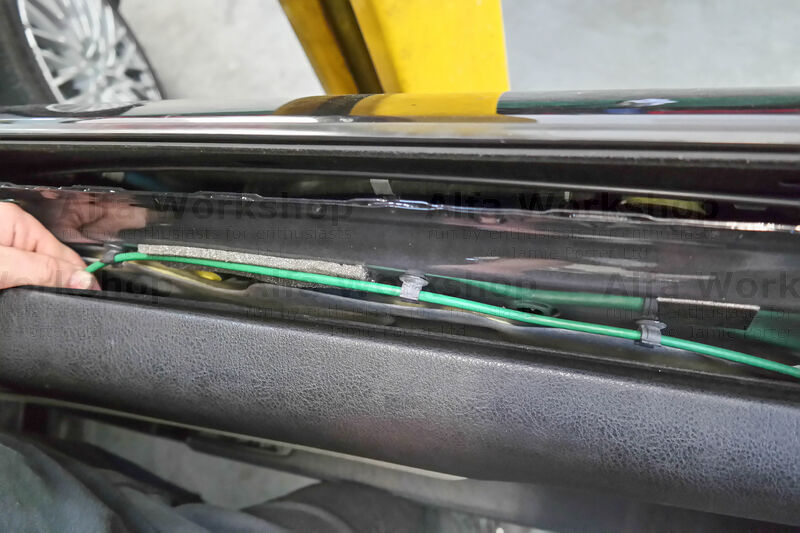

 | Release the cable support clips. |
|

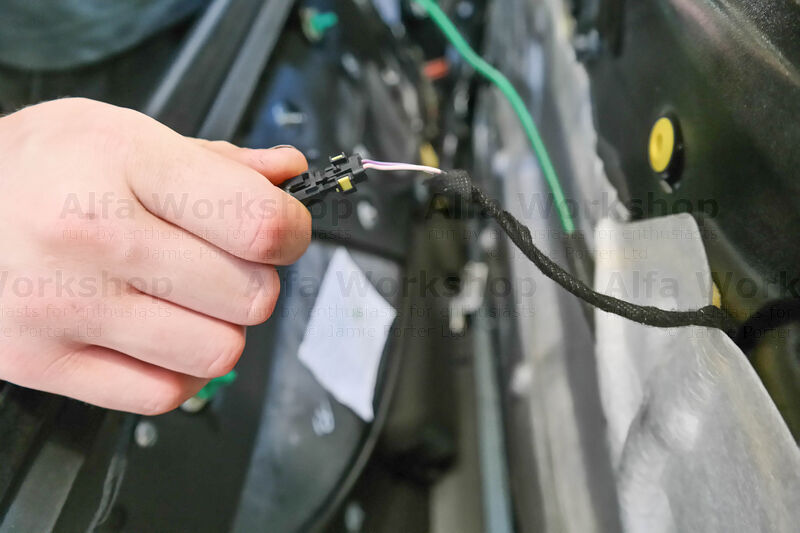

 | Disconnect the LED light wire. |
|

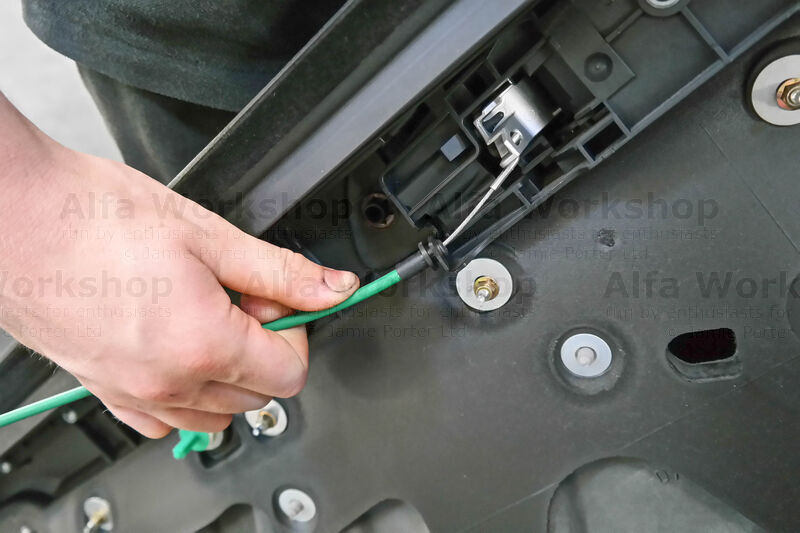

 | Pop the door release wire and unhook it from the handle. |
|

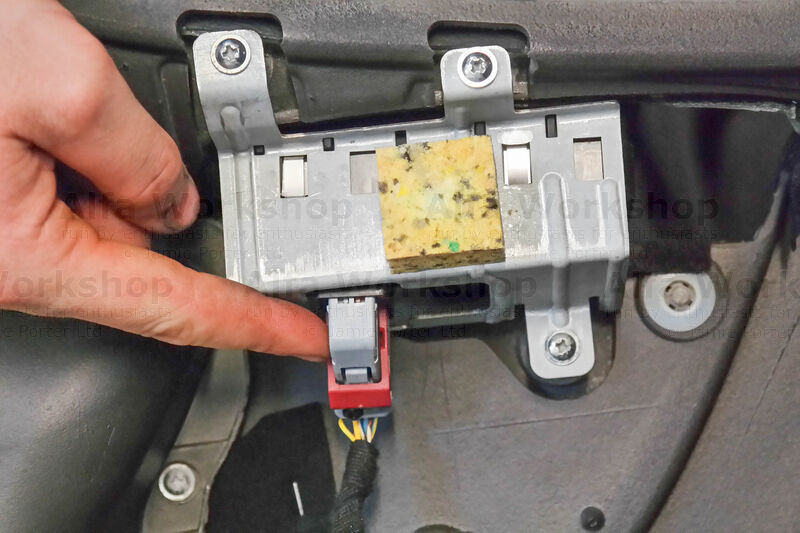

 | Push in the grey tab and flip up the red release lever to unplug the window switch. |
|

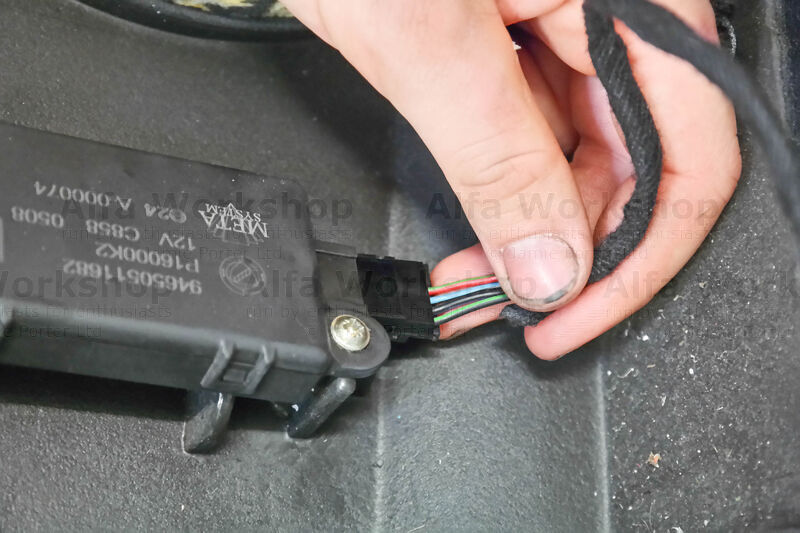

 | Unplug the sensor. |
|
 | Slide out the puddle light, disconnect the wire then the door card is free. |
|
