Replacing The Stop & Start Sensor On A Giulietta
You will need to drill out the rivets and remove the heat shield from the center exhaust tunnel to access the gear levers plastic housing.

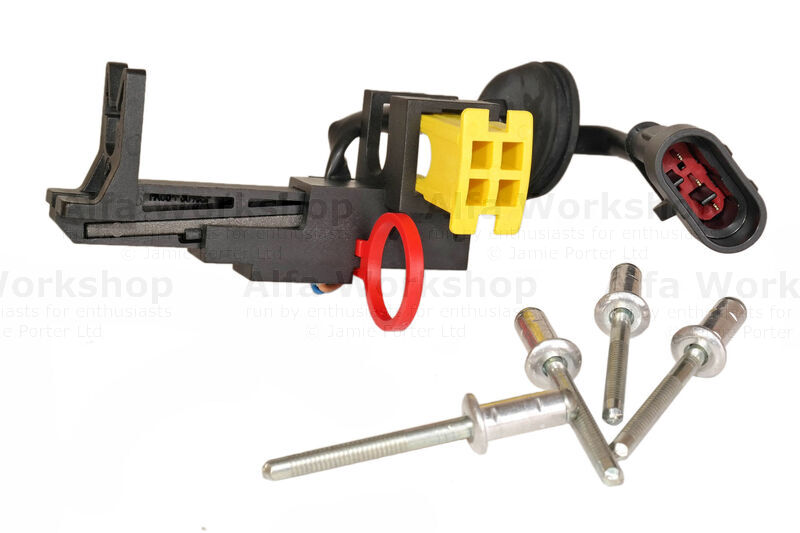

Stop & Start sensor 55228312, rivet 51813156
Workshop time: 1 hour 30 mins
If you would like to book your Giulietta into the workshop the price for this repair is £285.01

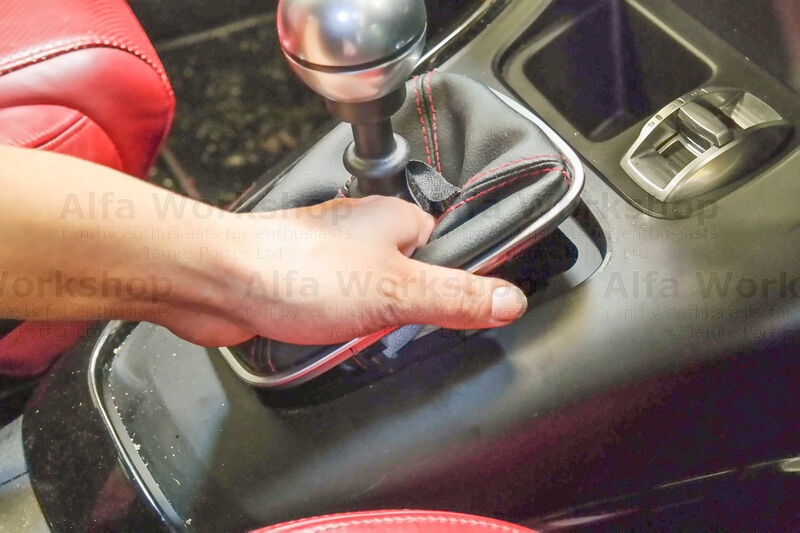

 | Make sure the vehicle is in neutral, undo the velcro that secures around the cursor, dip your hand in and release the clips that holds the gaiter surround. |
|

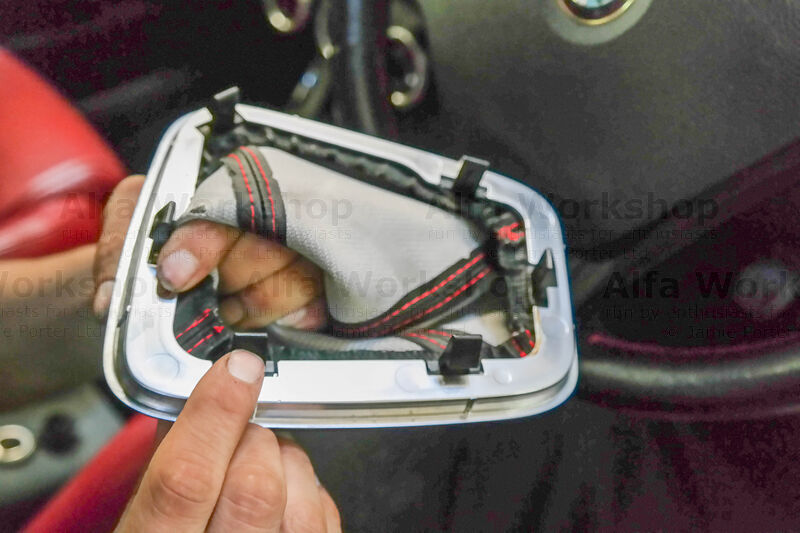

 | These are the clips that need pulling back. |
|

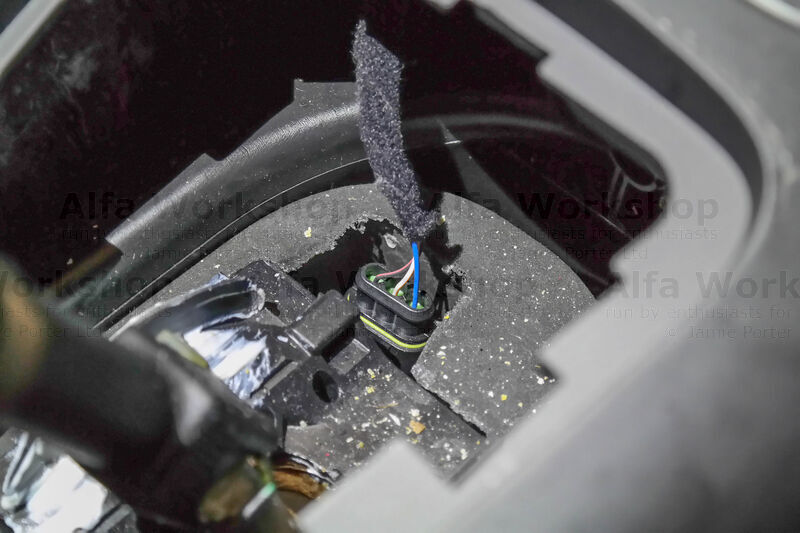

 | Undo the connector. |
|

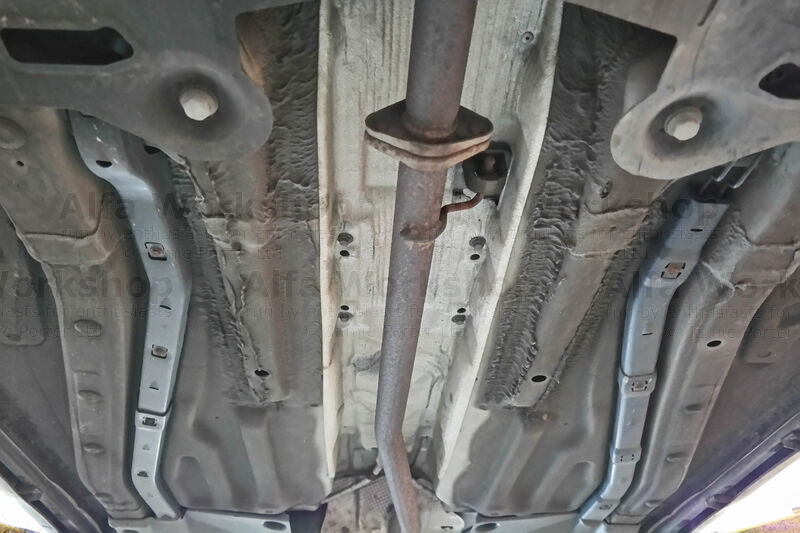

 | The heat shield in the exhaust tunnel needs removing. |
|

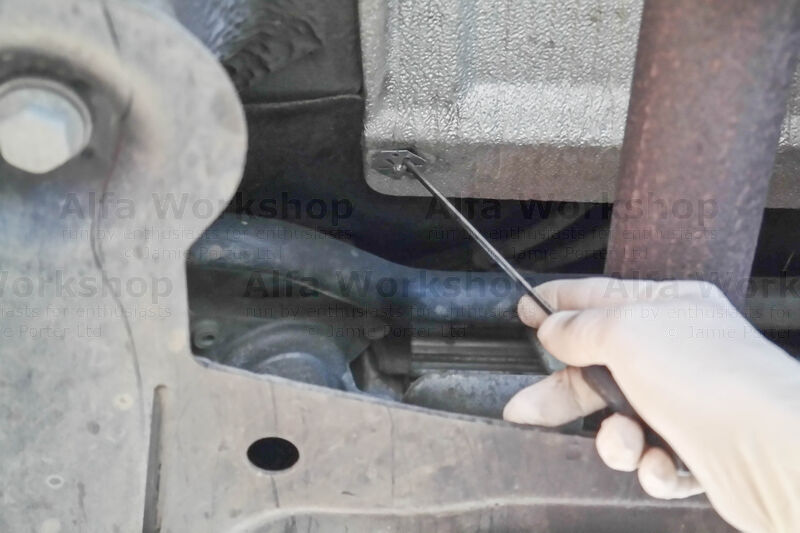

 | Work off the x2 washer clips at the front of the tunnel. |
|

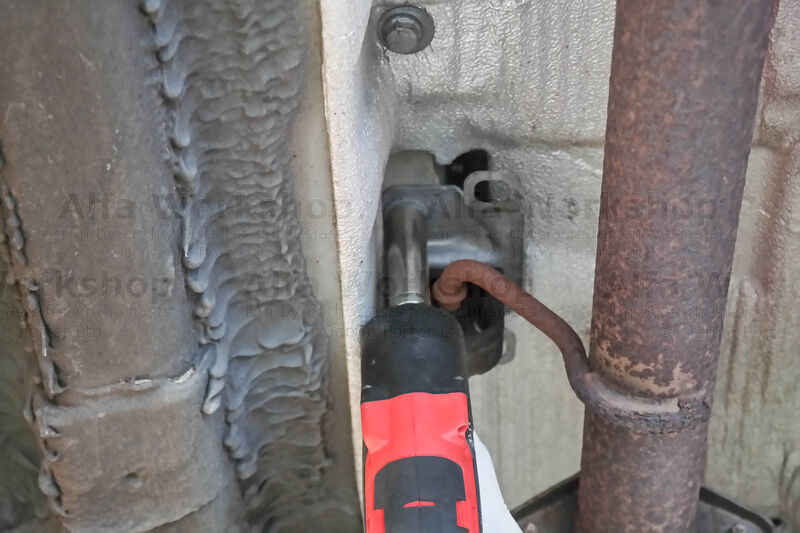

 | Undo the 13mm bolt to the exhaust bracket. |
|

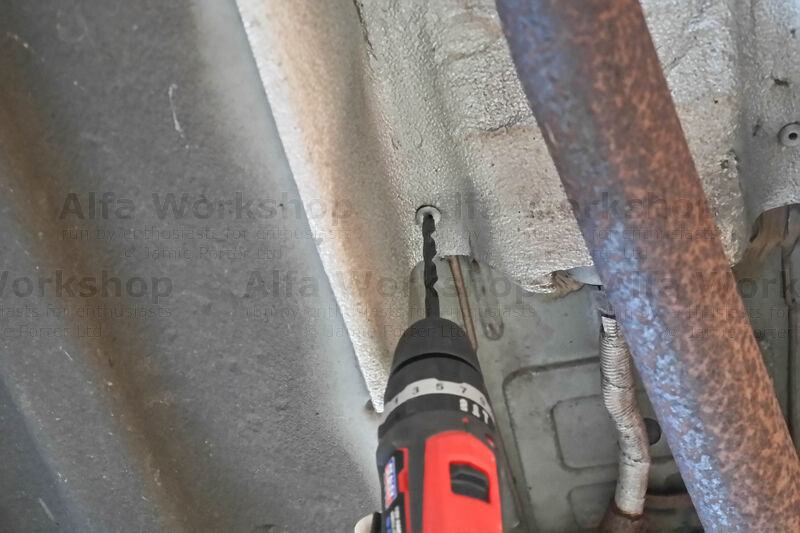

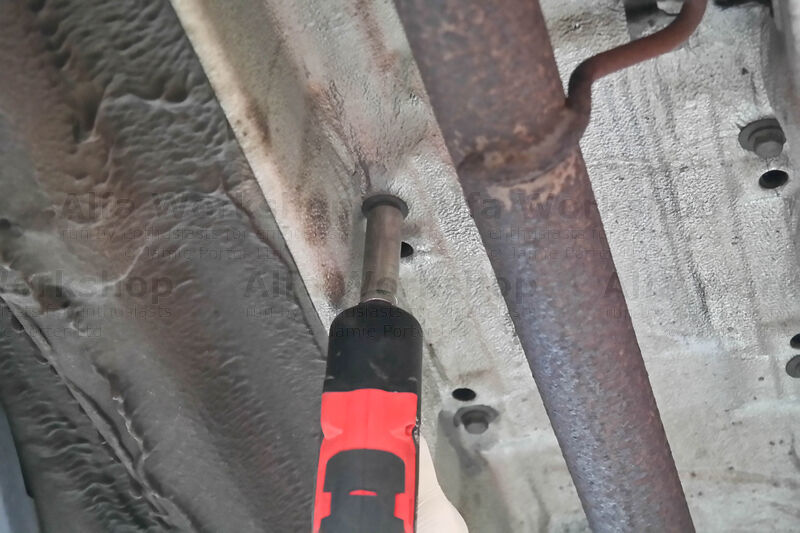

 | Drill out the the x4 rivets with a 6mm bit. |
|
 | Undo the x4 13mm bolts... |
|

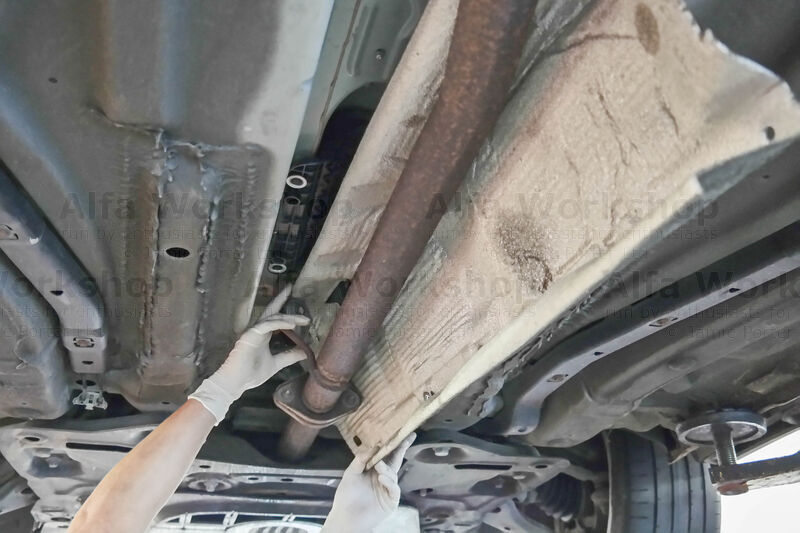

 | ...and wriggle the heat shield out. |
|

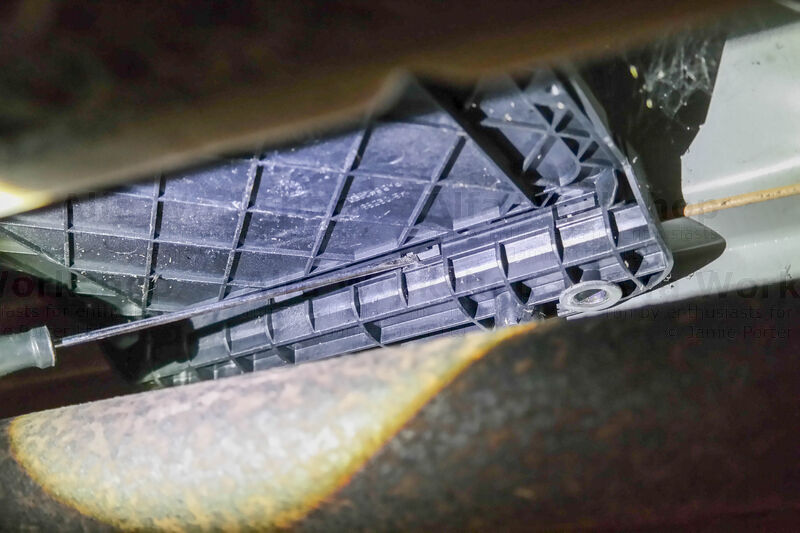

 | Remove the bottom panel to the plastic housing by pressing in the x10 tabs. |
|

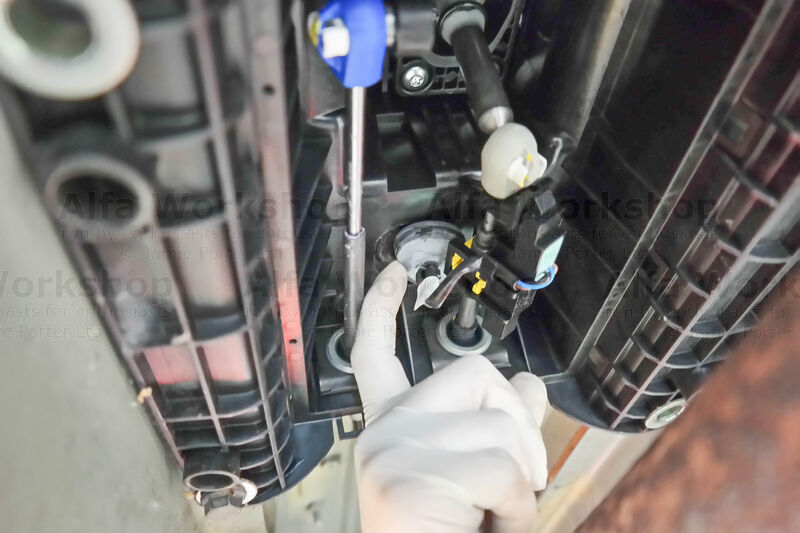

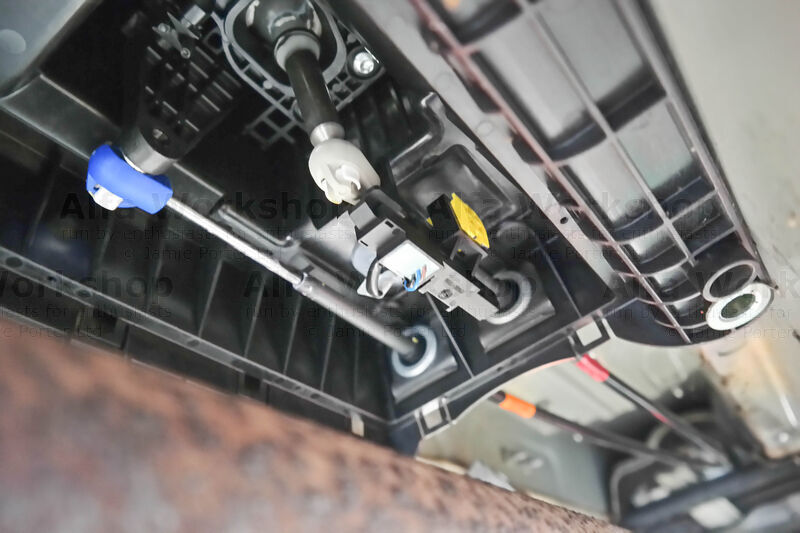

 | This is the sensor. |
|
 | Prise out the rubber plug where the wire runs up through. |
|
 | Pull out the yellow securing tab. |
|

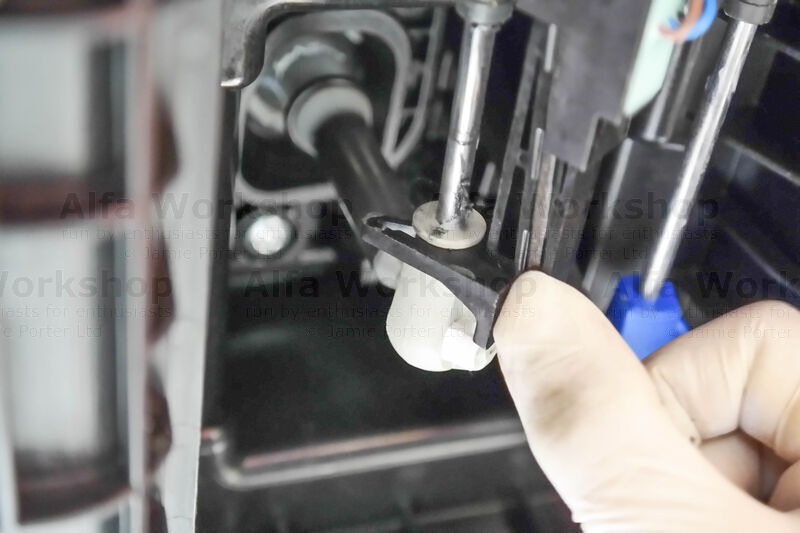

 | Unclip the plastic prongs and it's out. |
|
 | Clip the new sensor back in place then pull out the red locking ring. |
|
