Replacing The Spark Plugs On A MiTo & Giulietta 1.4 Mulitiair Turbo.
This guide should also apply to the 1.4 Turbo models as well.
Four spark plugs are required 55249868

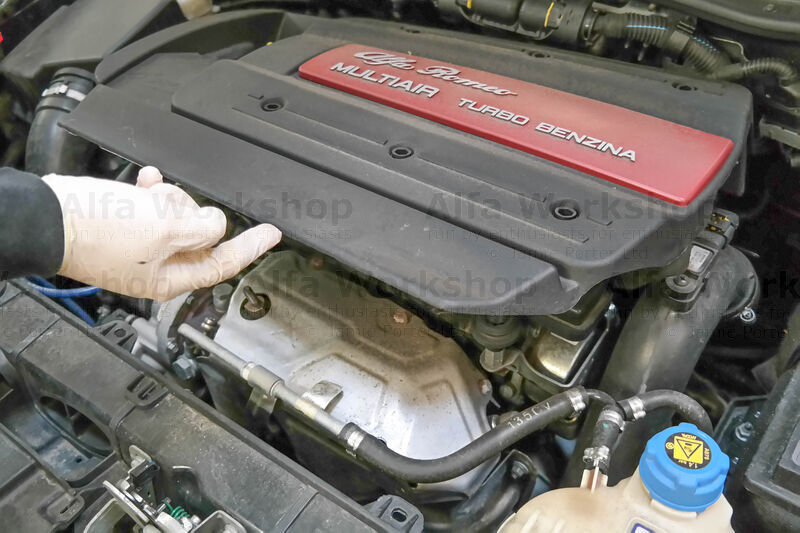

Pull the engine cover up and off which is secured by three push fit bungs. |
||

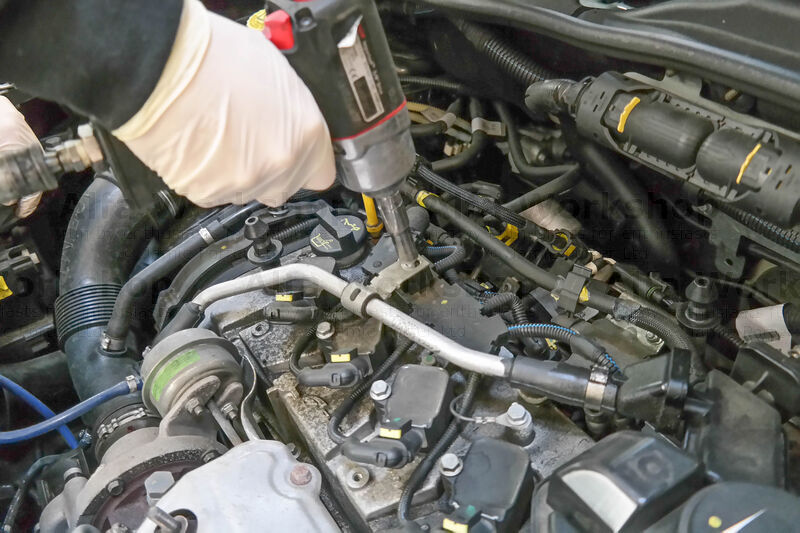

Undo the 10mm breather rail bolt. |
||

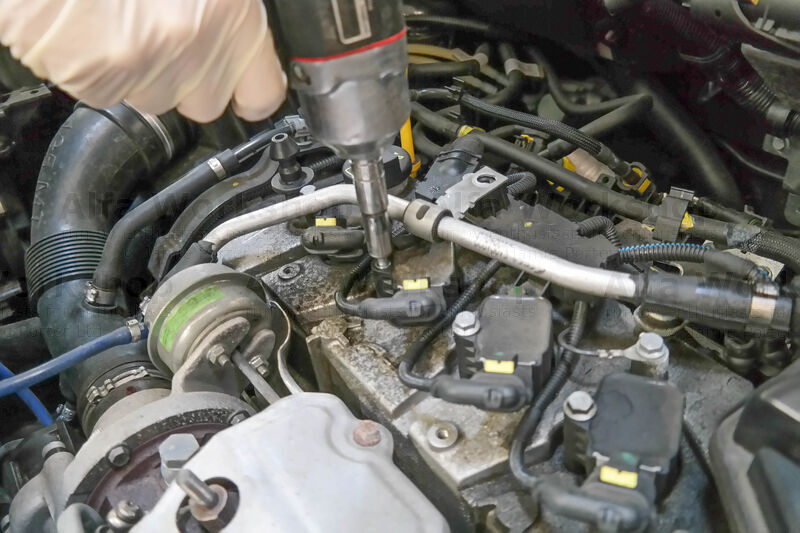

Undo the four 10mm coil pack bolts. |
||

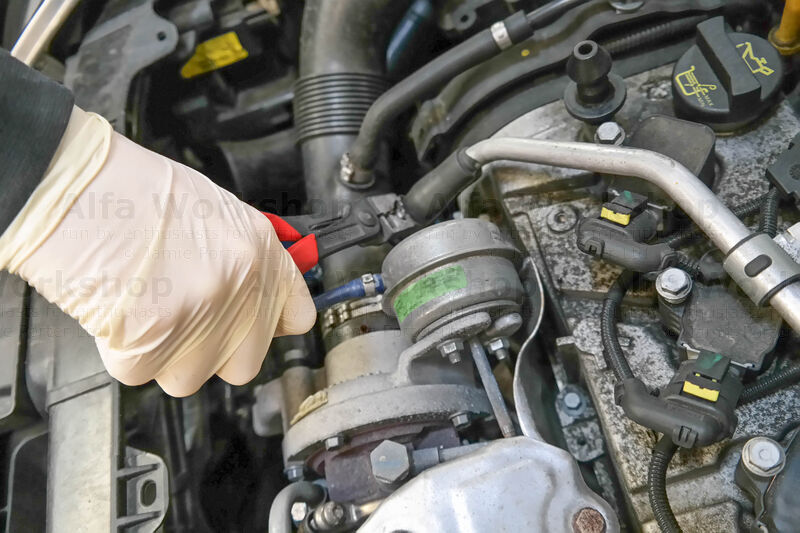

Unclip the breather pipe at the left of you, |
||

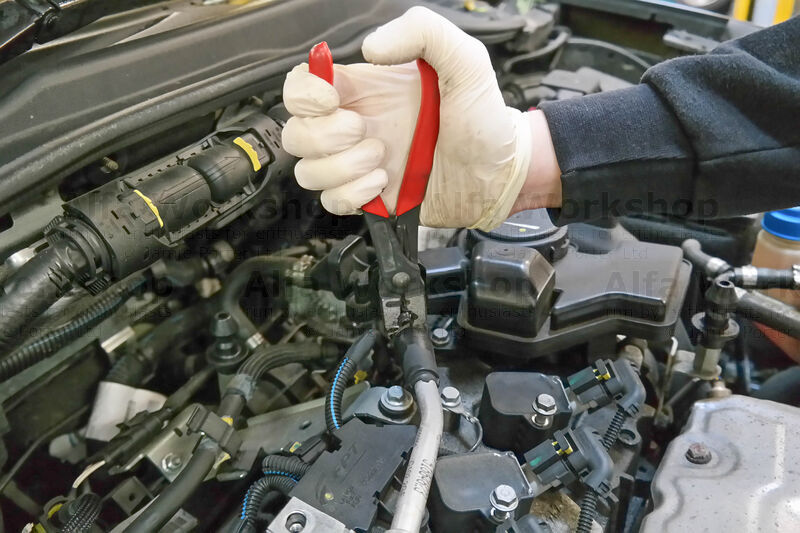

and the right. |
||

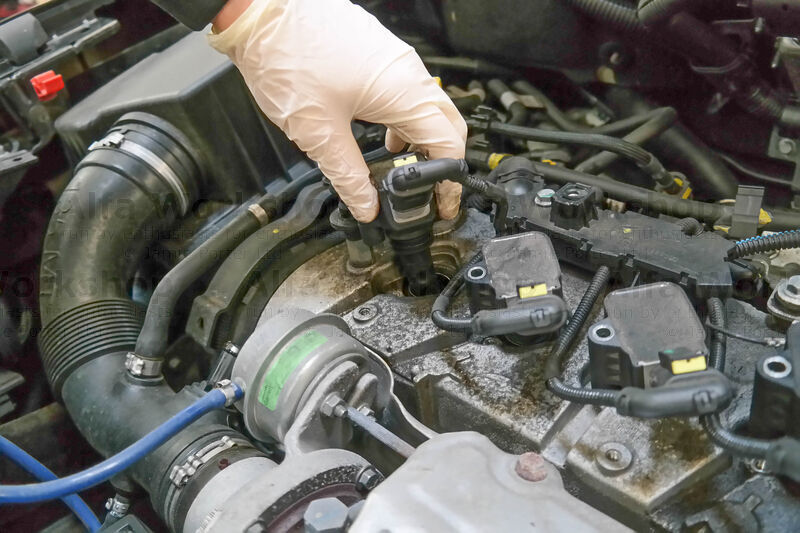

Pull the coil packs off of the spark plugs and out of the way. |
||

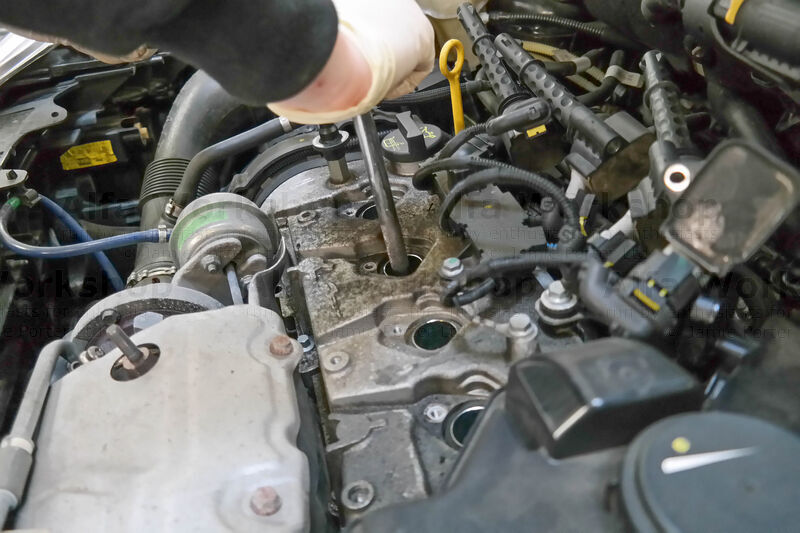

Using a 16mm spark plug socket unscrew the spark plugs, |
||

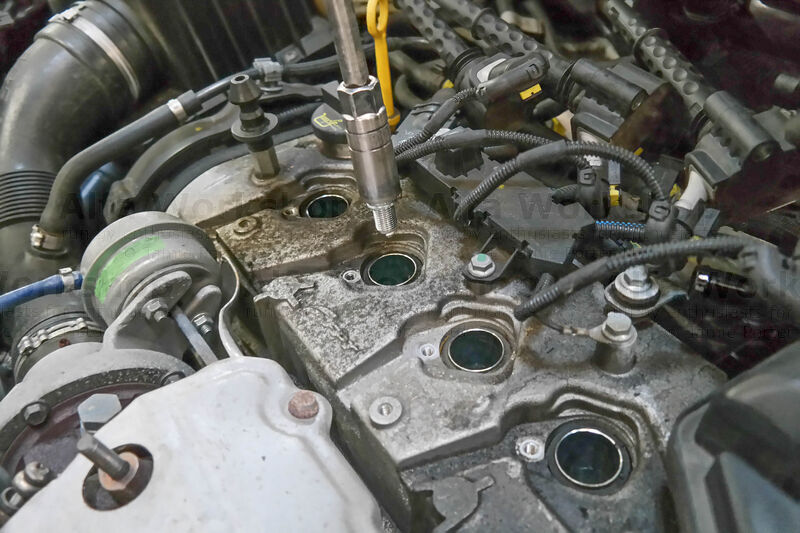

remove and replace. |
