Removing The Front Headlight On An Alfa Giulia
You will need a plastic trim removal tool so not to damage the bumper when separating it from the wheel arch. This 'how to' is for the LEFT side headlight.
Headlight 50564107
Workshop time: 1 hour 30 mins

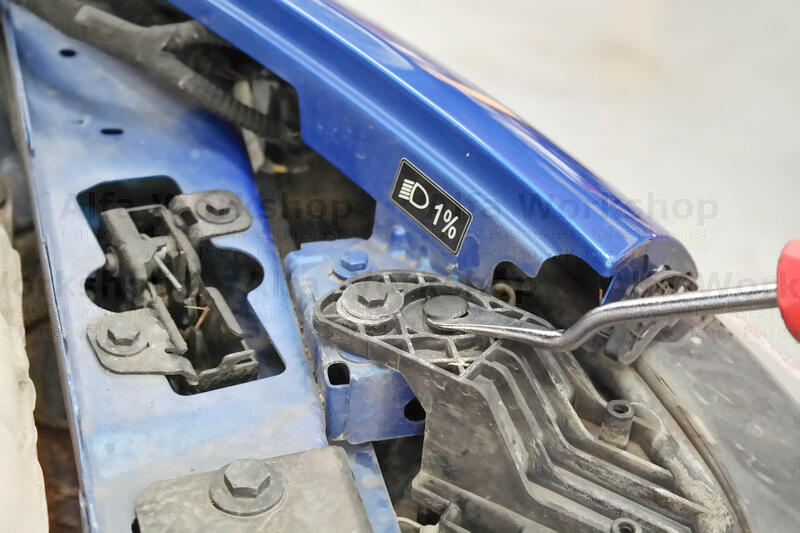

 | Prise the head of the plastic push clip at either end of the top bumper rail. |
|

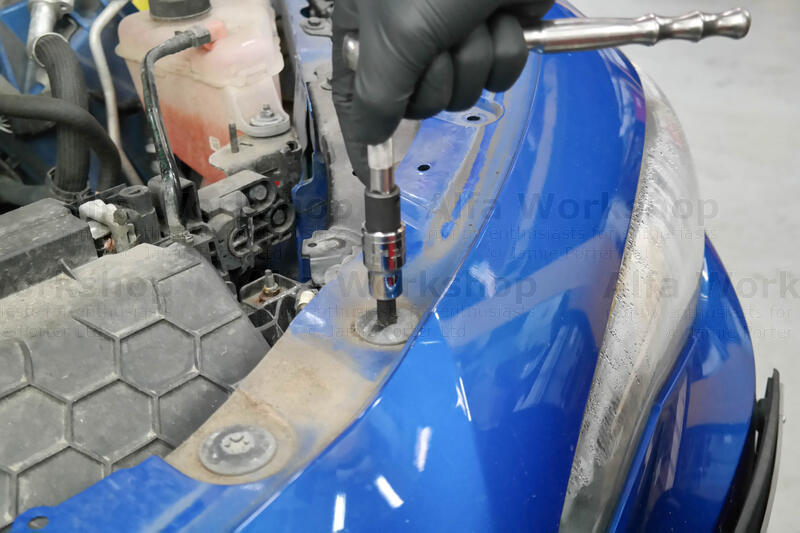

 | Undo the x6 T55 (Torx) screws along the top rail. |
|

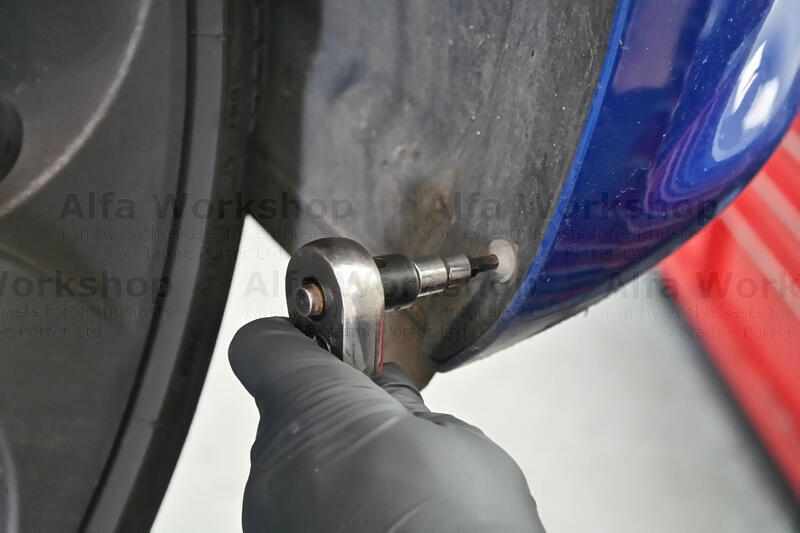

 | Down the front outer edge on both front wheel arch liners are x4 T25 screws. |
|

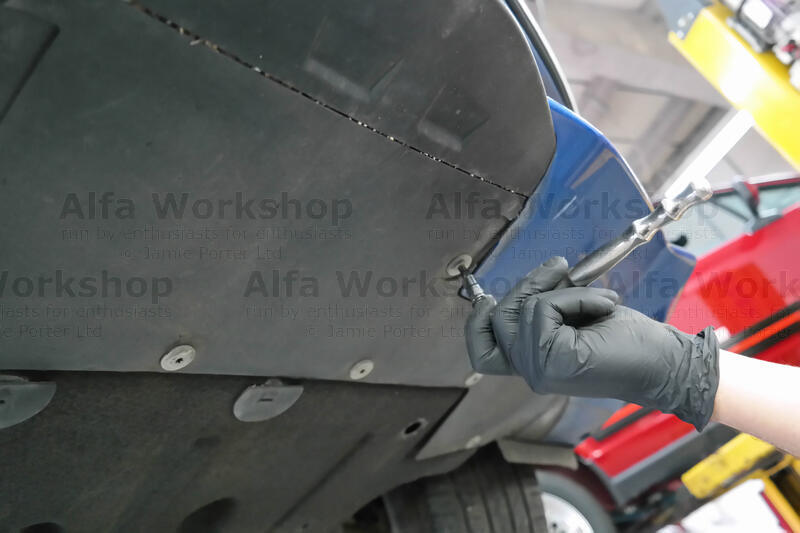

 | There's another T25 screw on either corner on the front section of the undertray. |
|
 | Undo the x11 T30 screws to the front section of the undertray. |
|

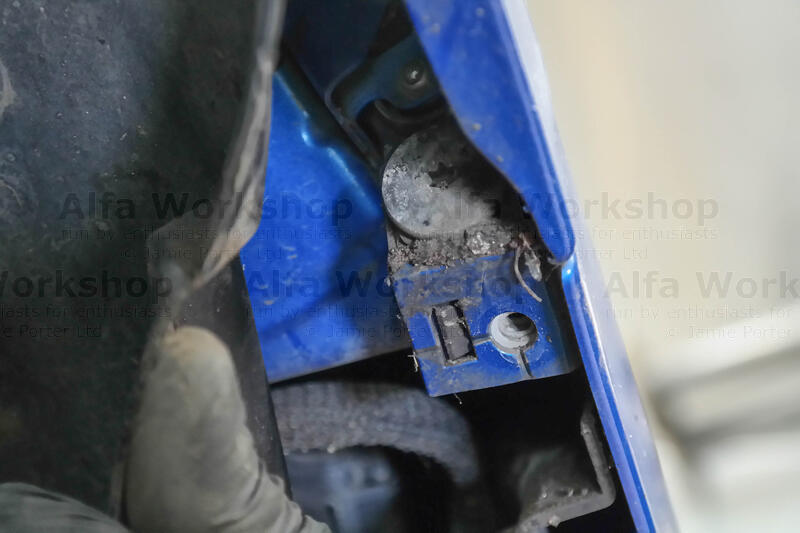

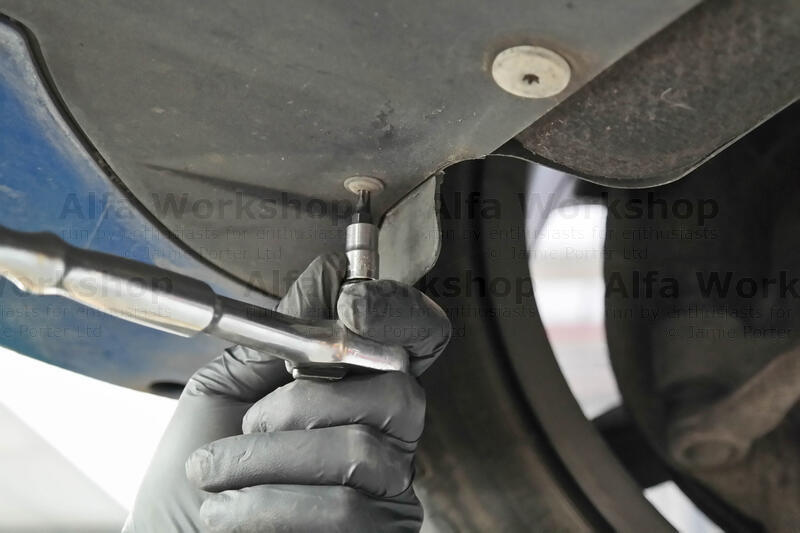

 | On both the front wheel arch liners, pull back the bottom corner and undo the T30 screw. |
|

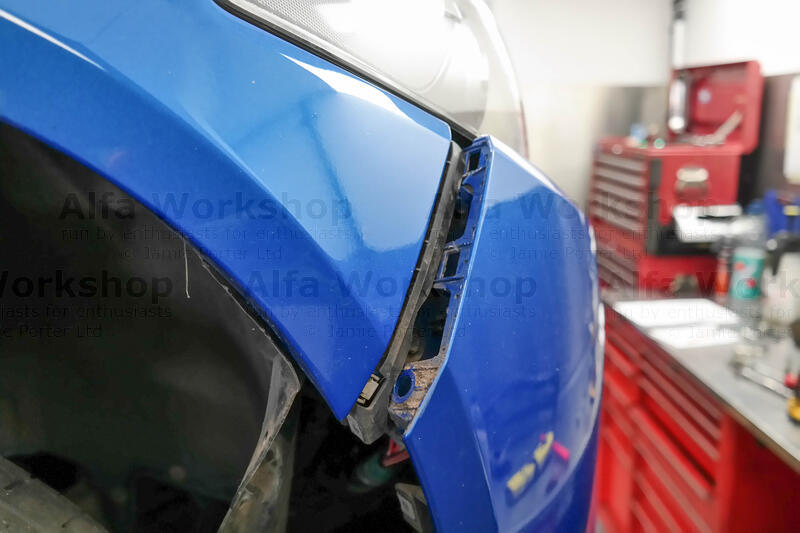

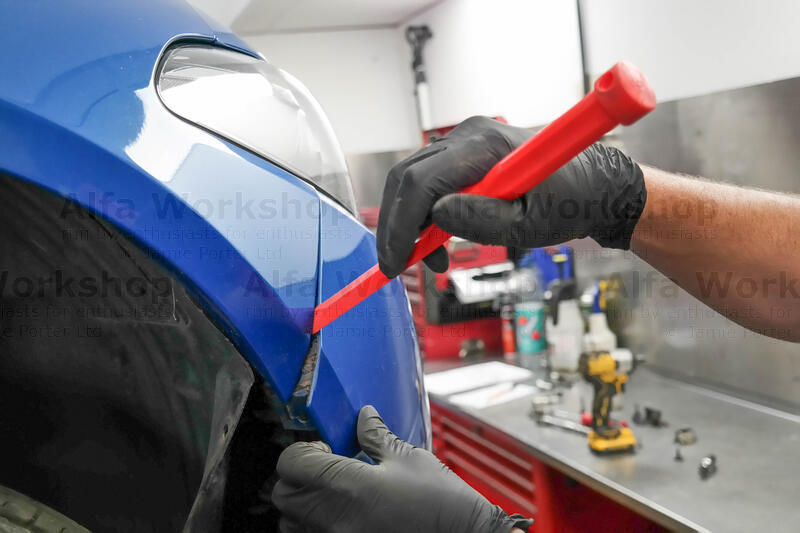

 | Using a plastic trim removal tool carefully separate the lower corners of the bumper from the wheel arches. |
|
 | They're a push clip fit. |
|

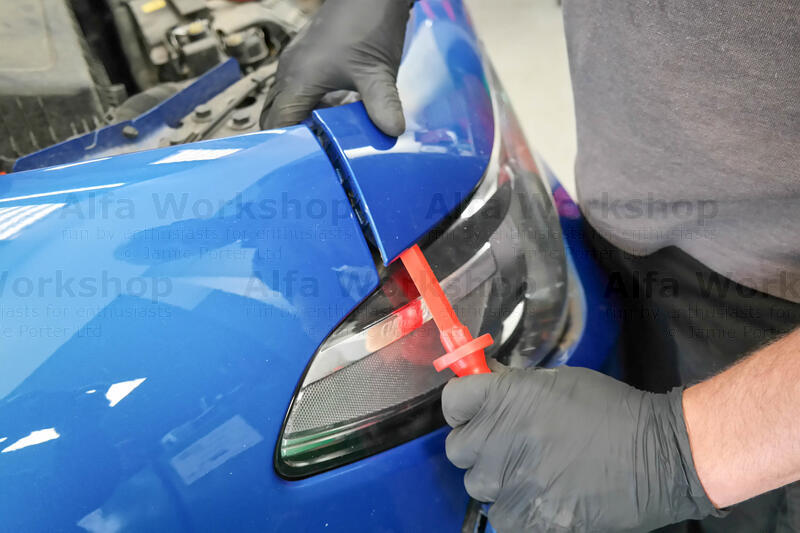

 | Separate the top corners of the bumper. |
|

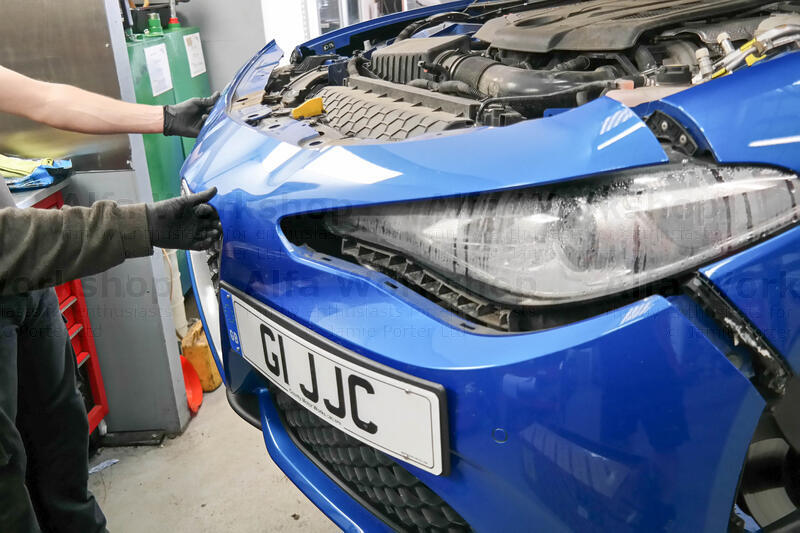

 | It's easier for two people to remove the bumper as there's still a wiring loom connected. |
|

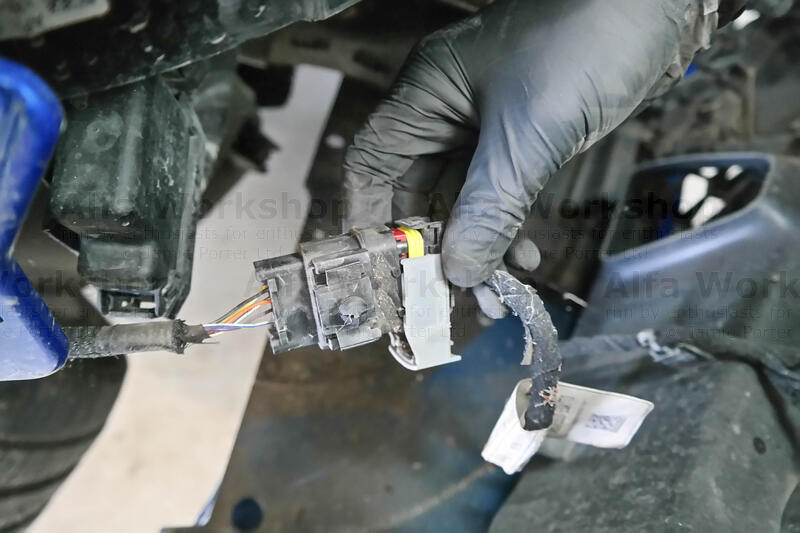

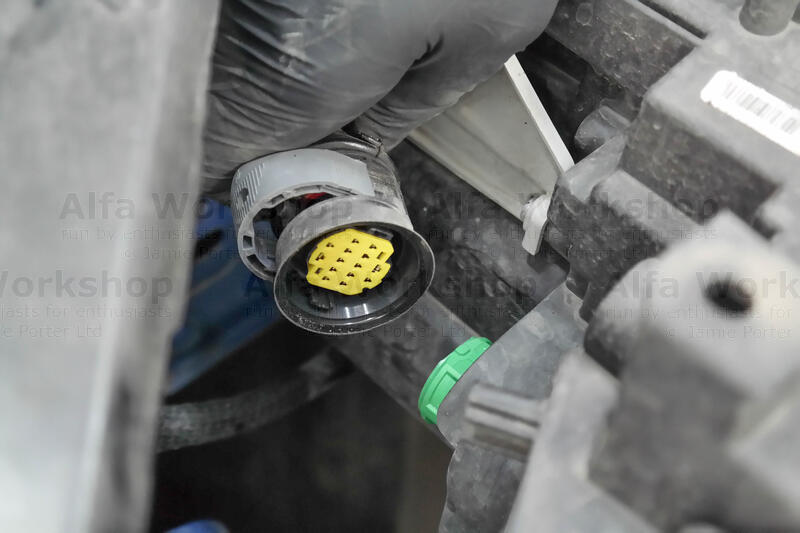

 | Disconnect the wiring loom at the right end. |
|

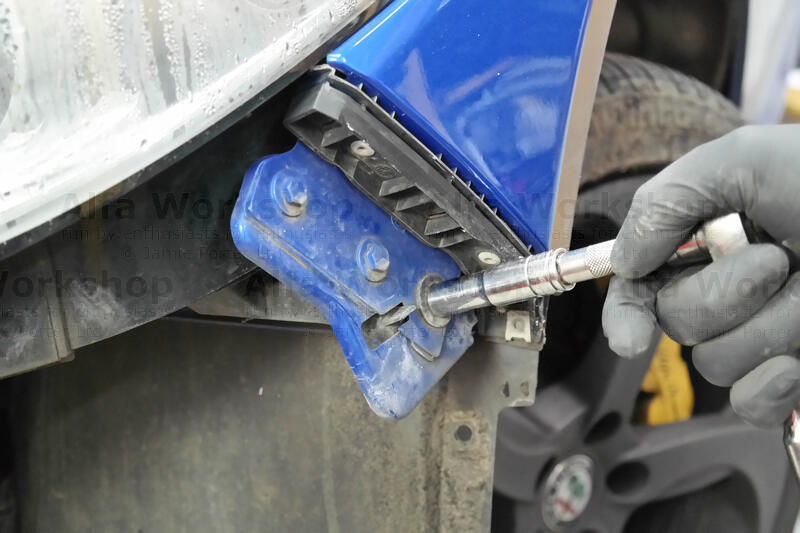

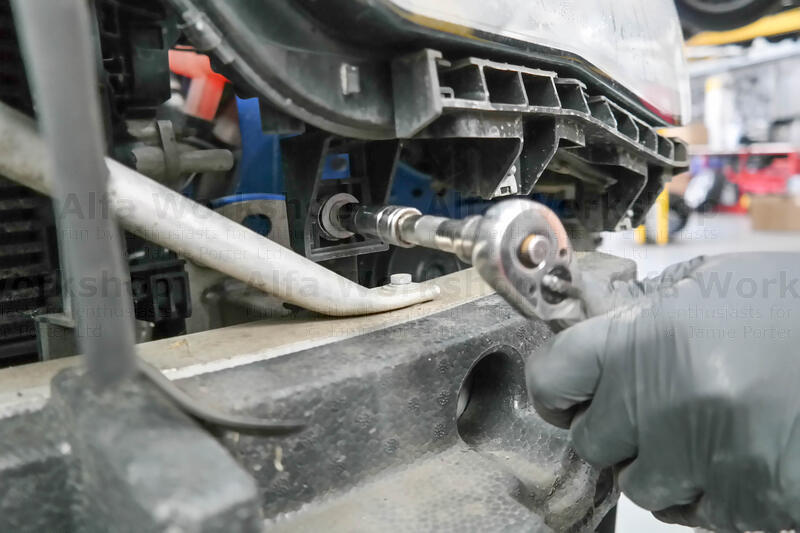

 | The bottom headlight mount has a M10 bolt. |
|
 | So does the side mount. |
|
 | On the top mount there's a locating push clip as well as the M10 bolt. |
|

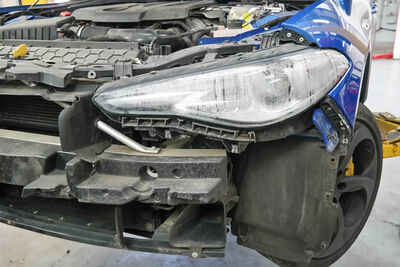

 | Unplug the connector at the back of the headlight and the headlight can now be removed. |
|
