Alfa 916 series GTV and Spider dashboard warning lights.
 | This is the engine management warning light, the fault is usually with a sensor but it can be with the out put to coils or a fault with the electronic control unit itself but this is rare. |

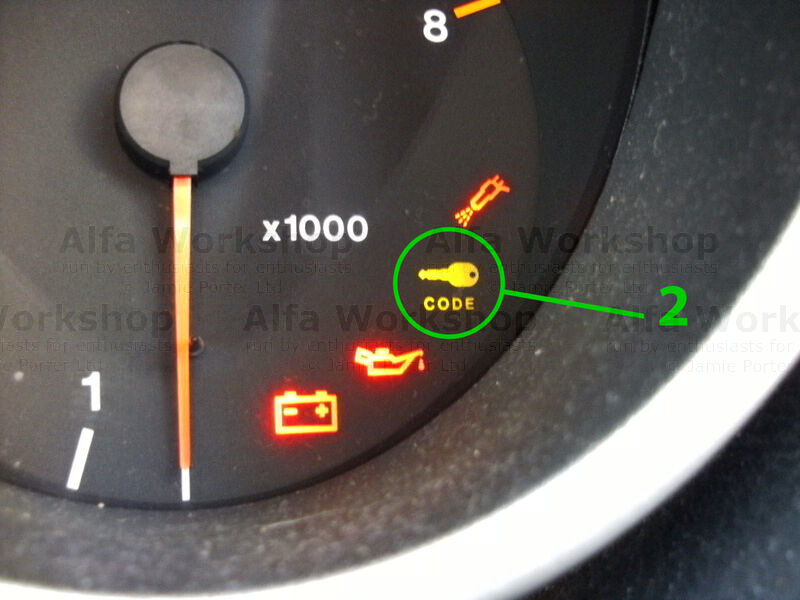

 | If the key code light stays on there is a fault with the immobiliser system or the car doesn't recognise the key and the car will not start. |
 | Oil pressure light, if this comes on turn the car off immediately and do NOT drive. The most common problem is a severe lack of oil so please check the level first. Max to min on the dipstick is 1 Litre but if the oil light comes on you will almost certainly need to put in around 2.5-3 Litres. Put the oil in at about a litre at a time and check on the dipstick until you get the level correct. |
 | Charging light, this does not mean you have a flat battery! If this light is on it almost certainly means you have a problem with the alternator and your car is not charging. |
 | Air bag warning lamp if illuminated you have a problem with the air bag system and the system has turned itself off. If this light is on the air bags will NOT deploy in the event of an accident! |

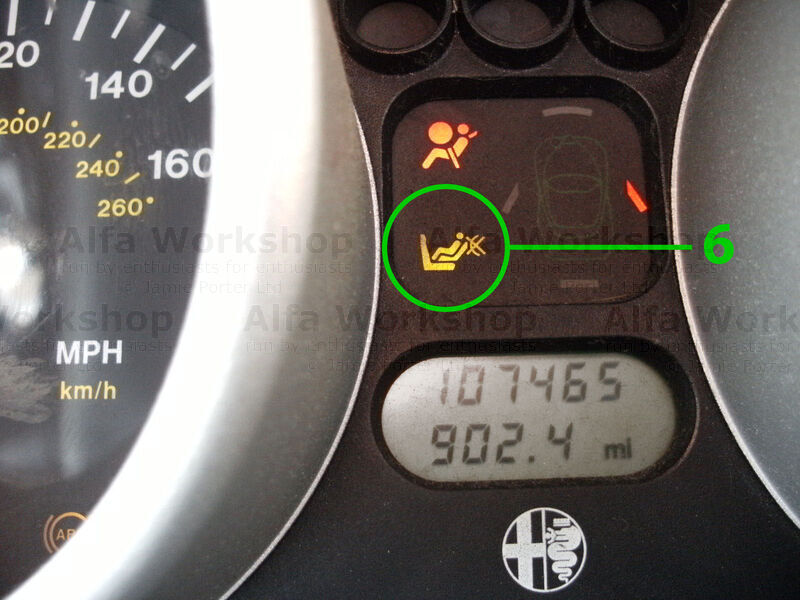

 | Passenger side air bag is not active, this should only be used if a baby seat is installed and the baby is facing backwards. In all other cases the passenger air bag should be switched on even with small children in the front seat. |

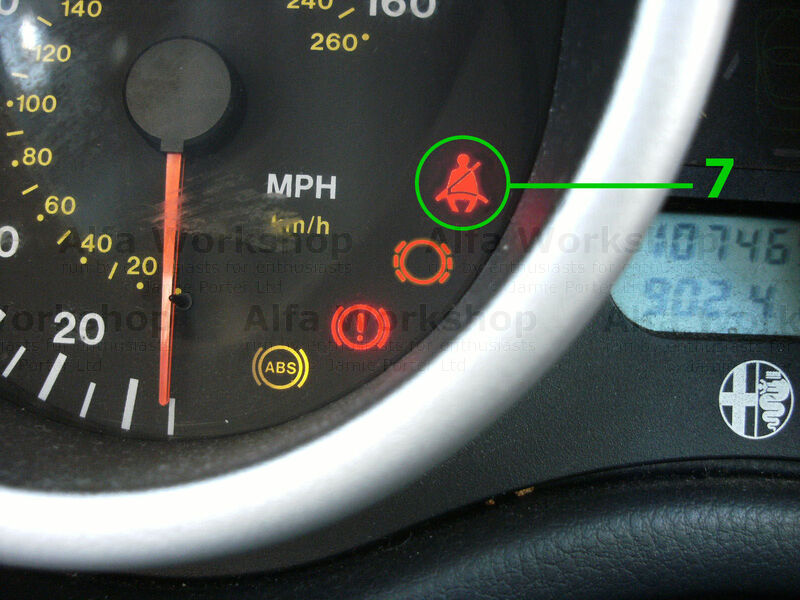

 | Seat belt warning lamp |
 | Front brake pad wear indicator, this means that you need new front brake pads. |
 | Hand brake on or brake fluid low, remember if the brake fluid is low you may also have a leak on the clutch side as the reservoir feeds both! |
 | Anti lock braking system warning light, if this is on the ABS is off, the most usual issues are with wheel speed sensors. |
